Touchless, closed, safe
The greatest risk when using cleaning equipment in cleanrooms is the spread of contamination through contact and open containers as well as open liquids. With MopScoop PROTECT, the first completely closed cleaning and disinfection process for cleanrooms has been developed, which eliminates precisely these risk factors and solves all known problems with manual operations.
Central components
MopScoop PROTECT consists of three perfectly coordinated components for a contact-free, process-safe, ergonomic and easy-to-understand workflow as well as a validatable and user-independent results. All components are designed according to Hygienic Design guidelines and are proven to be suitable for use in ISO (classes: 3-8) as well as GMP (classes: A-D) cleanrooms.

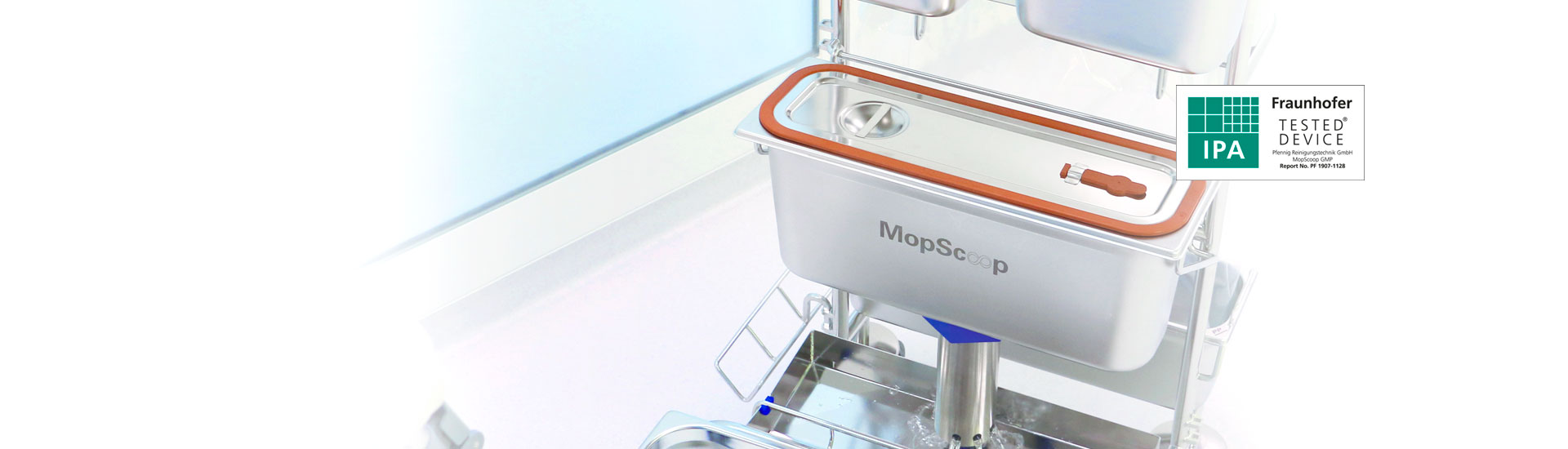

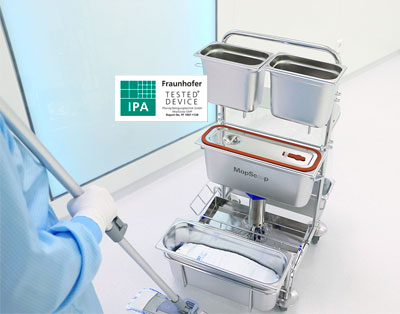

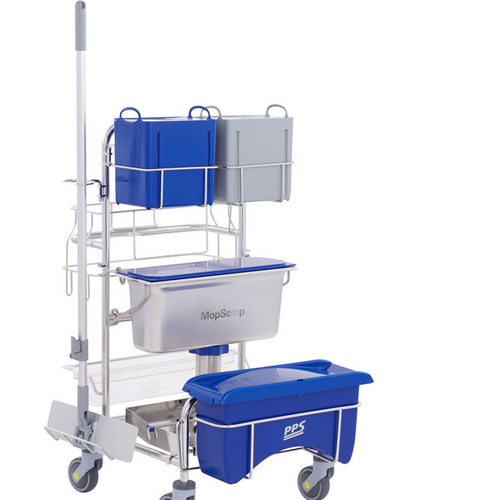

1. MopScoop dosing system
Validated dosing system for a contact-free supply of a defined quantity of liquid for impregnating mop covers:
- Closed container for cleaning or disinfecting solution
- Proven shelf life test (solution lasts up to 8 days in closed MopScoop container)
- Precise dosing with only +/- 1.3% deviation
- Flexible application possibilities due to variable dosing quantities (130 ml, 200 ml, 250 ml, 400 ml)
- Proven durability with over 50,000 dosing cycles

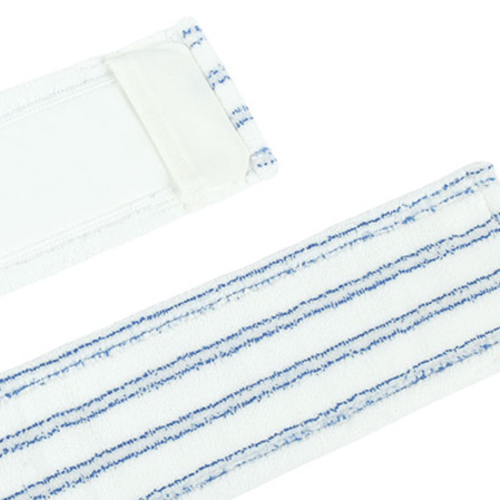

- Disposable or reusable mop concept possible
Here you can find more information about the MopScoop dosing system.

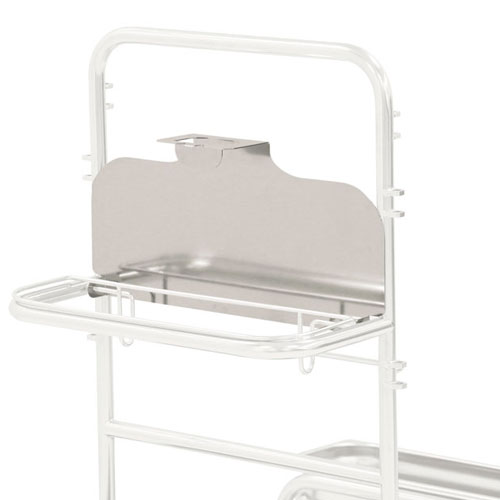

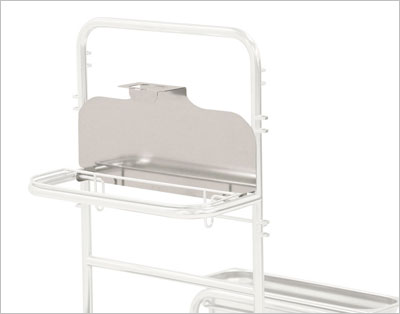

2. Lid MopDrop CR PROTECT
The lid with integrated throw-off mechanism for a closed disposal area. Used mop covers can be discarded without the use of physical force and stored closed:
- Completey closed disposal area
→ Avoids odor formation
→ Prevents cross contamination - Release of the mop holder at the integrated throw-off mechanism above the disposal area → No contact between mop holder and disposal bag
- Easy opening and closing of the lid without hand contact
Lid MopDrop CR PROTECT: Art. No. 3500089

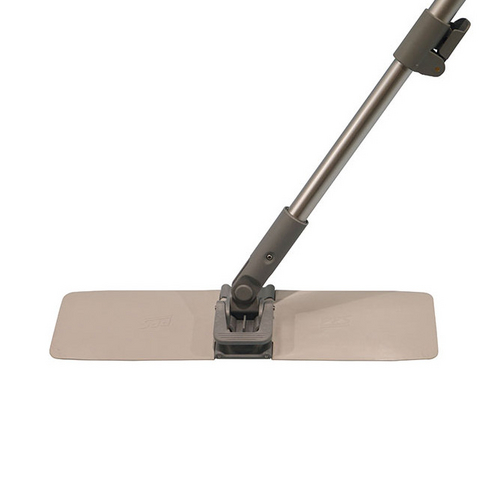

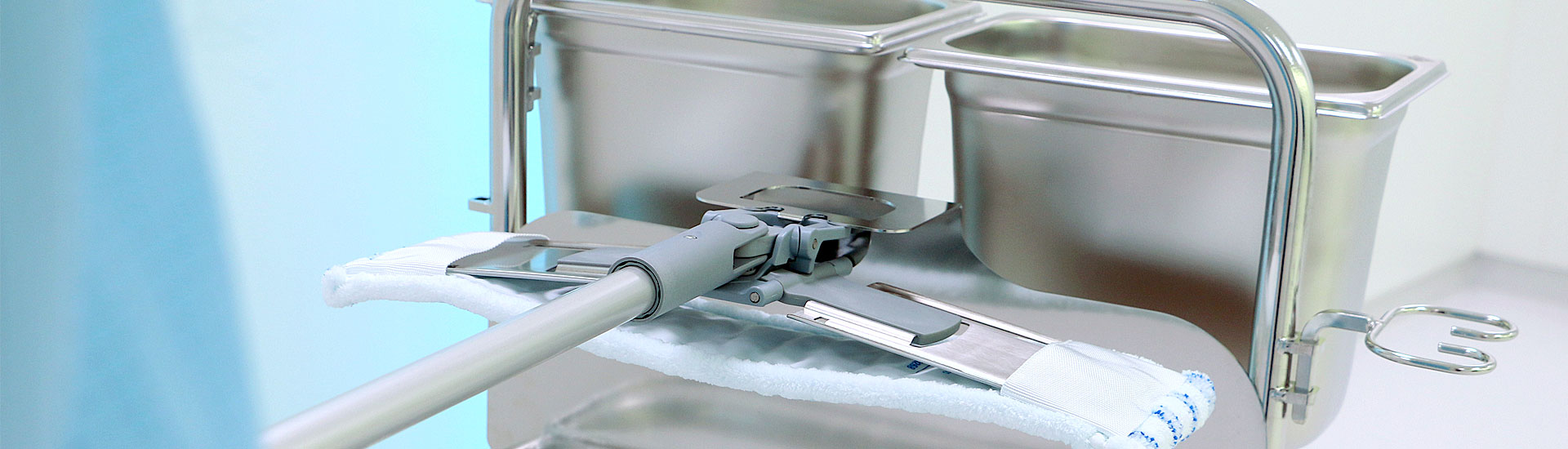

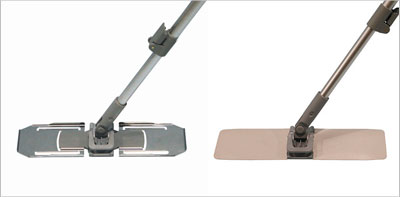

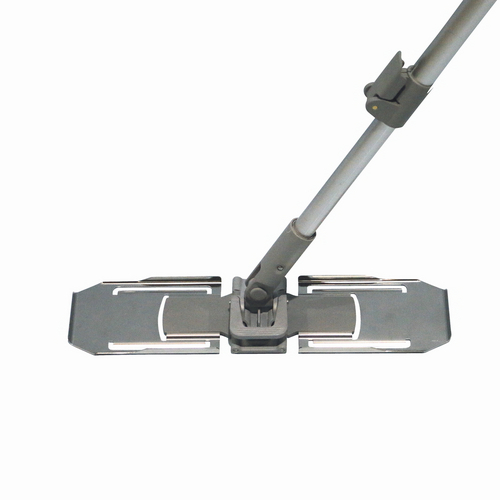

3. Mop holder Clino Synchro Hybrid / Clino Synchro CR
Autoclavable mop holder that can be opened contact-free in interaction with the throw-off mechanism on the lid to pick up and drop off mop covers:
- Touchless drop off and pick up of mop covers
- Innovative, symmetrical opening mechanism for easier mop pick-up and drop-off
- 100% contact surface: No slipping of mop covers
Clino Synchro CR with locking system Clino Connect Lock: Art.-No. 3500921
Clino Synchro Hybrid with locking system Clino Connect Lock: Art.-No. 3500926
Your advantages
- MopScoop PROTECT optimizes the hygienic and contamination-free work of cleaning staff in cleanrooms
- Increased process reliability and effectiveness of manual cleaning and disinfecting
- Easy-to-understand process almost completely eliminates operating errors
- Innovative, ergonomic handling generates motivation among users
- Proven suitability of all components through independent testing
- Prevention of odor formation and cross contamination through closed disposal system
- User-independent and validatable decontamination processes and results:
→ Uniform wetting of surfaces
→ Precise dosing accuracy - Extended applicability of active solutions (up to 8 days) due to fully enclosed storage
- Longevity of all components due to the use of high-quality materials
-

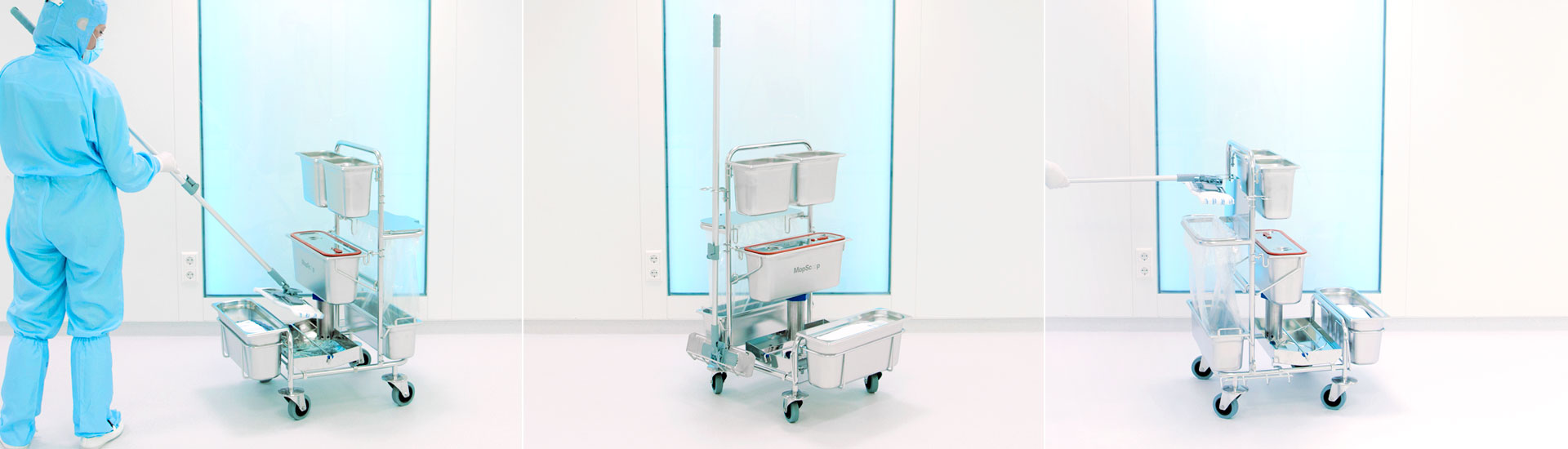

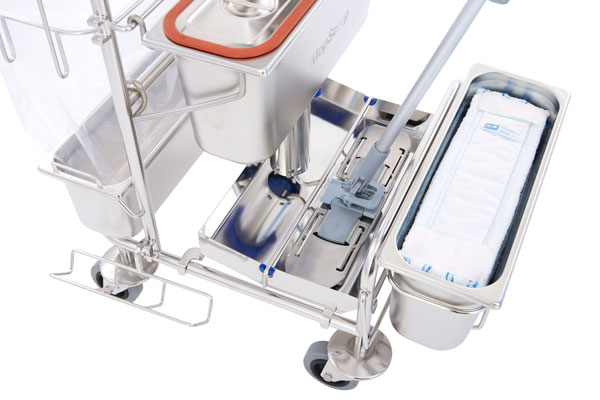

Step 1
Push down operating lever with mop holder. MopScoop automatically doses required liquid.
-

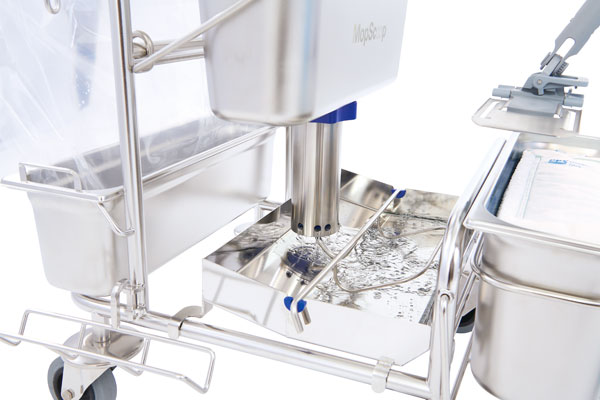

Step 2
Lift up mop holder. By releasing the lever, the liquid flows into the tray for the first wiping process.
-
Step 3

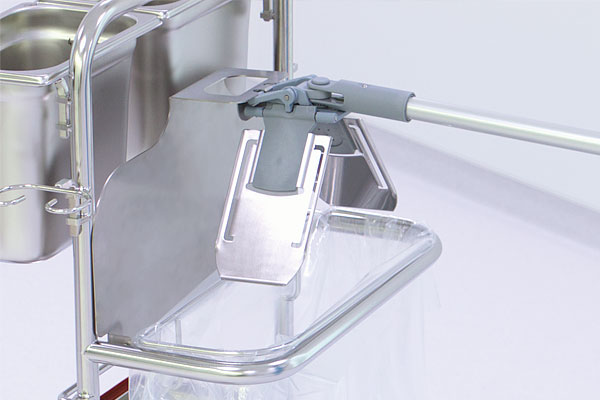

Open lid MopDrop CR PROTECT by means of mop holder and operate opening mechanism.
-
Step 4

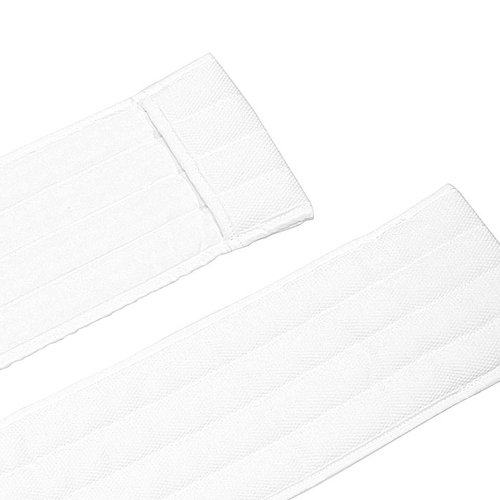

Pick up mop cover.
-

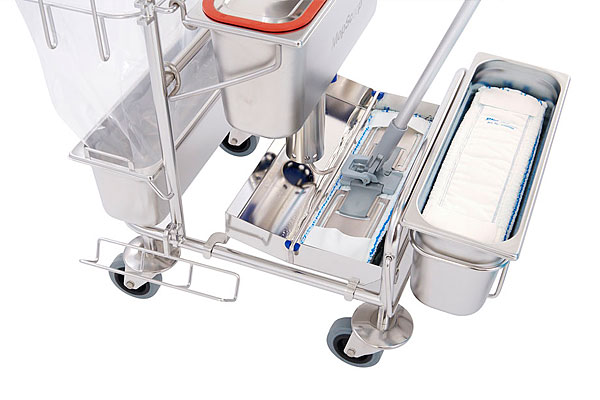

Step 5

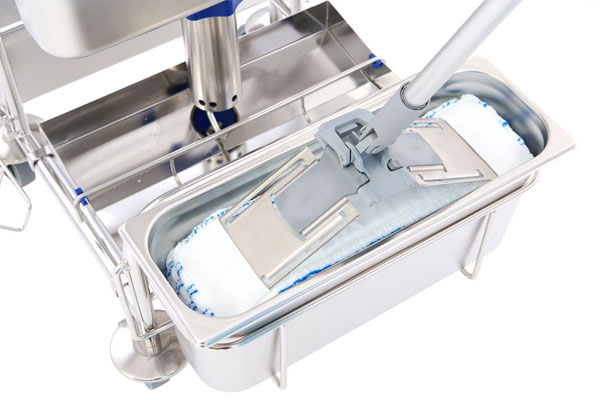

Push down operating lever and let the mop absorb the liquid in the tray. MopScoop automatically doses liquid for the next wiping process.
-
Step 6

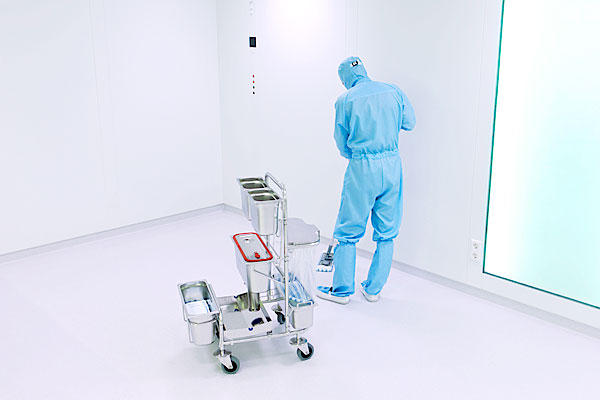

Perform wiping process.
-

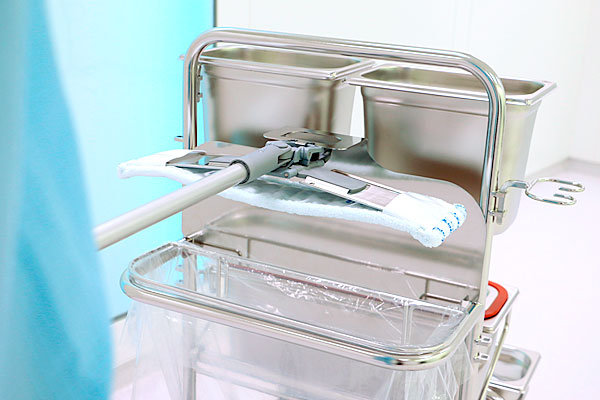

Step 7

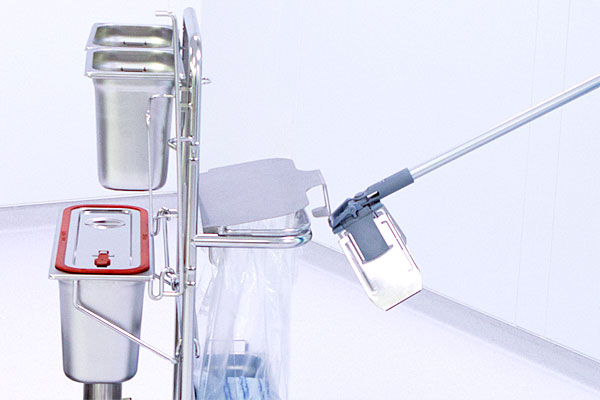

Open lid MopDrop CR PROTECT by using the mop holder and drop off contaminated mop cover.
-
Step 8
Close lid MopDrop CR PROTECT touchless.
We have the solution for your requirements

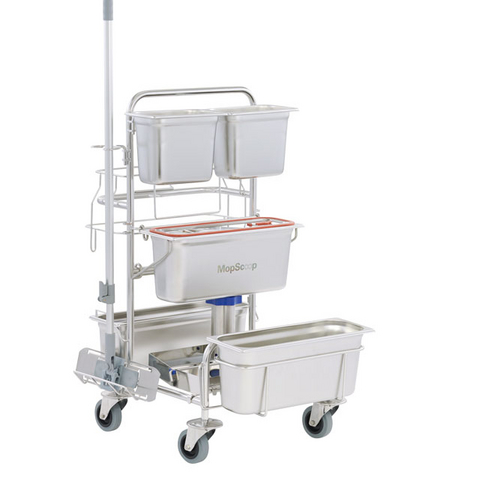

You want to perform long-term validatable cleaning and disinfection results while successfully controlling contamination? The MopScoop PROTECT process can be individually adapted to the specific requirements and conditions of your cleanroom. All components can be retrofitted to existing Clino CR system trolleys in no time at all and without tools, or you can configure the ideal synergy of system trolley, accessories and textile together with our experts.
